Overview

Cloud Native Build supports users to subscribe to system events and push notification messages to a configured callback URL.

Workflow

Notification Configuration

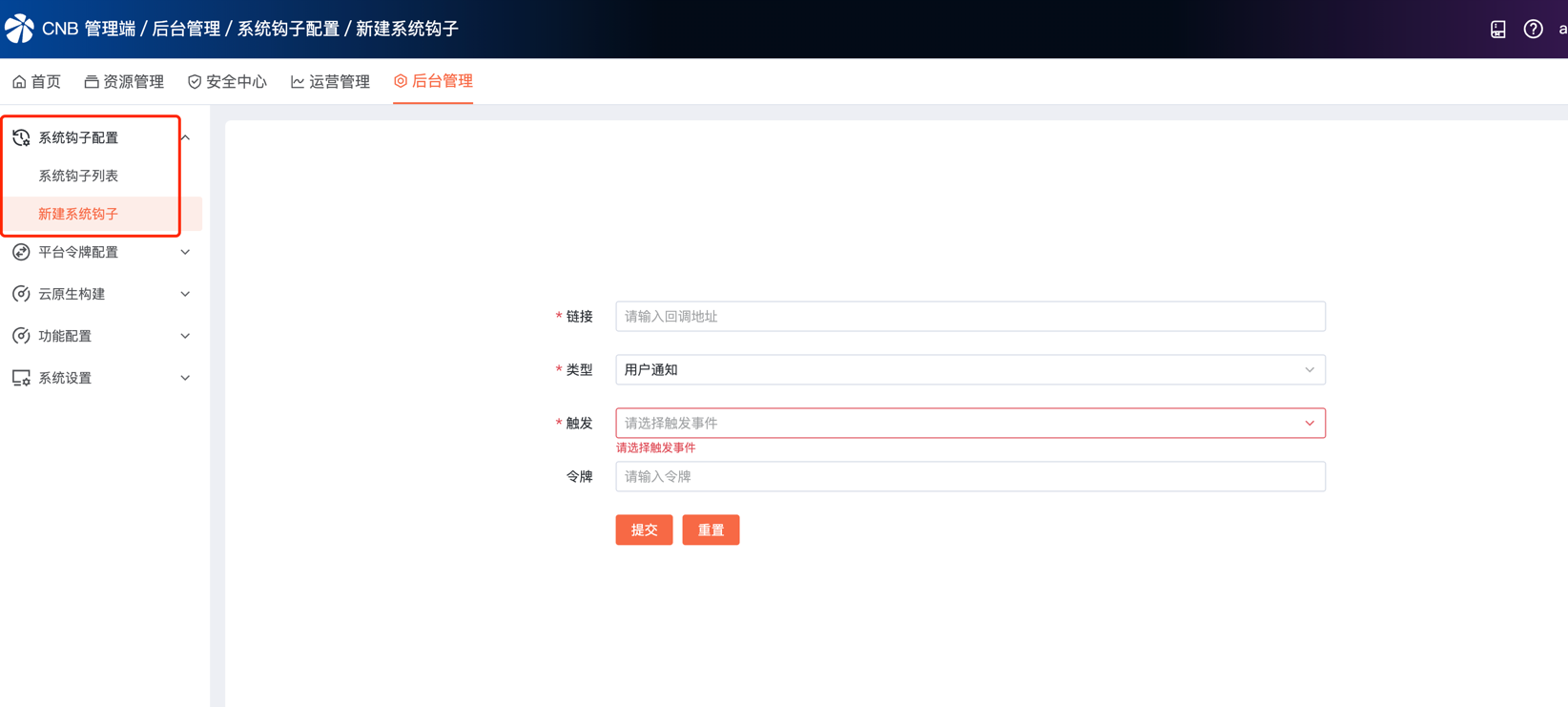

After logging into the admin management platform, click Admin Console → System Hook Configuration → Create System Hook to enter the configuration page.

The configuration parameters are as follows:

Parameter Name	Type	Required	Description
URL	String	Y	Callback URL. Cloud Native Build will send notification messages here.
Type	String	Y	Select User Notification
Trigger	String	Y	Subscribed event types, multiple selections supported
Token	String	N	Authorization token for the callback URL, optional

Event Types

Cloud Native Build supports the following event types (not limited to):

• pull request
  • New comment
  • New assignee
  • New reviewer
  • Status change
  • New review
• issue
  • New comment
  • New assignee
  • Status change
• Repository
  • Archive
  • Delete
  • Transfer
  • Member role change
• Organization
  • Transfer
  • Member role change
• User
  • @user

Notification Message Structure

Notification Header

• Content-Type: application/json;charset=utf-8
• X-CNB-Event: System Hook, identifies the notification message event
• X-CNB-Token: If an authorization token is configured (see Notification Configuration), this field will be included

Notification Body

{
  "touser": "UserID1|UserID2|UserID3",
  "msgtype": "text",
  "text": {
    "content": "There is a new PR to be processed"
  }
}

Parameter descriptions:

Parameter Name	Type	Required	Description
touser	String	Y	List of member IDs to receive the message (separated by |, up to 1000)
msgtype	String	Y	Message type, fixed as: text
content	String	Y	Message content, up to 2048 bytes

Notification Message Example

Taking Pull Request review as an example, when a reviewer approves the PR, the following notification is sent:

admin1 approved PR #1

feat: init
https://cnbprod.alpha.qq.com/test/test-repo/-/pulls/1

Request body content:

{
  "touser": "123",
  "msgtype": "text",
  "text": {
    "content": "admin1 approved PR #1\n\nfeat: init\ncnbprod.alpha.qq.com/test/test-repo/-/pulls/1"
  }
}
